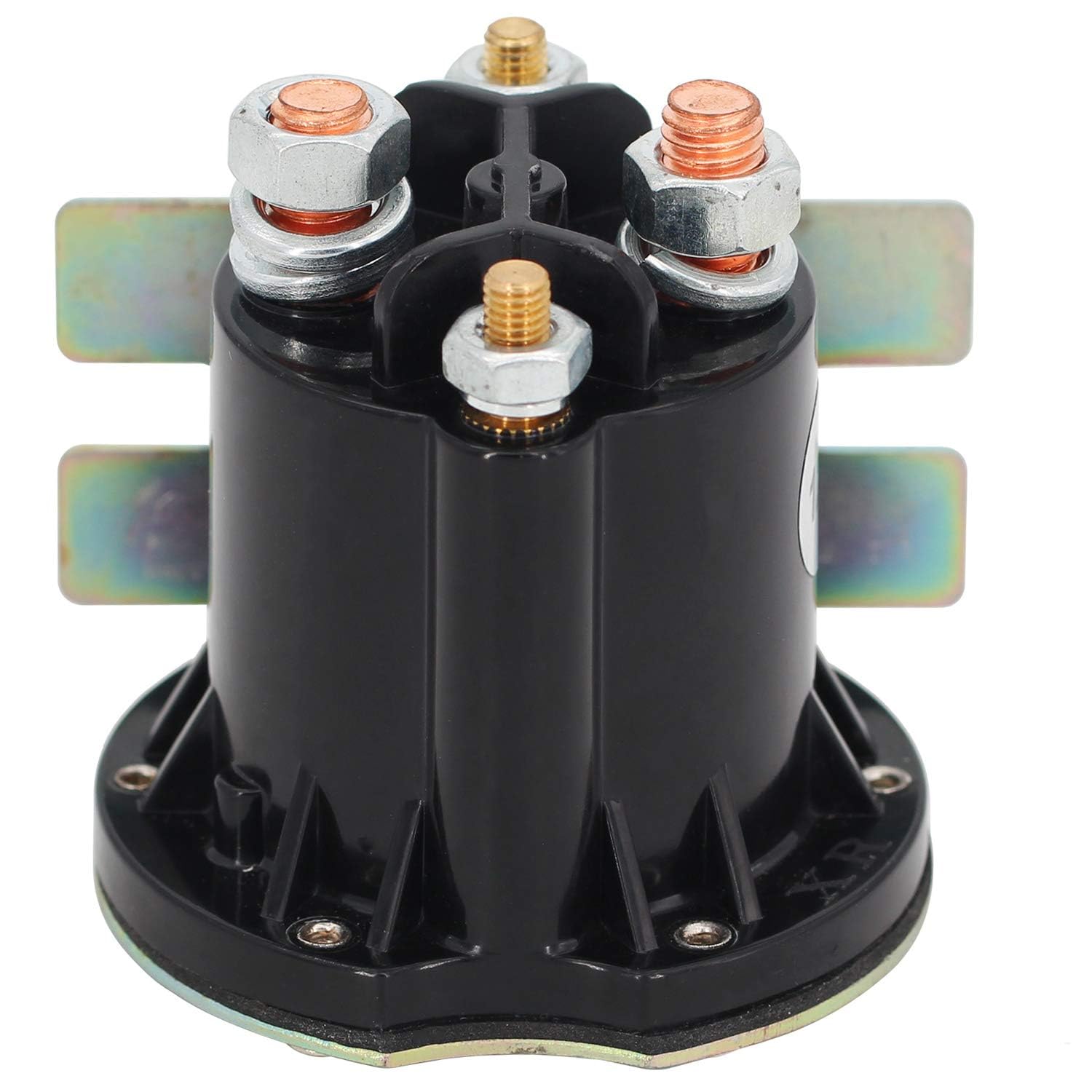

YIXIN 12V Solenoid Relay JW1-H1950-00-00 JR3-H1950-00-00 JF2-H1950-00 J38-81950-01 Compatible with 2003-Current Yamaha G22-G29 Golf Carts Trombetta 684-1271-012 684-1251-012 J&N 240-22272
Product details
| Management number | 221601820 | Release Date | 2026/05/03 | List Price | $8.80 | Model Number | 221601820 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Spec Voltage: 12V Terminals:4 Duty:Continuous High Current Stud: Around 5/16 Inch Low Current Stud:Around 0.19 Inch Mounting Type: Flat L-bracket Contacts Material: Copper Housing Material: PMC Potted coil: Copper Resistance: 5.7O Work Current: 100A Inrush Current: 120A Package Weight: 0.86 lb Package Size: 3.6 3 3 inch Replace for Yamaha JW1-H1950-00-00 YamahaJR3-H1950-00-00 YamahaJF2-H1950-00 YamahaJ38-81950-01 Trombetta 684-1271-012 Trombetta684-1251-012 JN 240-22272 Fit for 2003-Current Yamaha G22-G29 Golf Carts Polaris
- [REPLACE For] Yamaha JW1-H1950-00-00 JR3-H1950-00-00 JF2-H1950-00 J38-81950-01 Trombetta 684-1271-012 684-1251-012 J&N 240-22272
- [FIT For] 2003-Current Yamaha G22-G29 Golf Carts Polaris
- [SPEC] 12 volt 4 terminal continuous duty cycle
- [NOTE] Take care not to overtighten the nut/terminal during installation
- Please feel free to contact us for any questions, we will give quick response asap
| UPC | 194852804050 |
|---|---|
| Wattage | 25.96 watts |
| Brand Name | YIXIN |
| Part Number | HAN120085 |
| Coil Voltage | 12 Volts |
| Contact Type | Normally Open |
| Manufacturer | YIXIN |
| Mounting Type | Flat L-bracket |
| Connector Type | Screw |
| Current Rating | 120 Amps |
| Operation Mode | 12v |
| Coil Resistance | 5.7 Ohms |
| Contact Material | Copper |
| Contact Current Rating | 100 Amps |
| Maximum Switching Current | 100 Amps |
| Minimum Switching Voltage | 12 Volts (DC) |
