Up to 40m/131ft with Loop-Out Local Display,LKV712Pro HDMI POE Extender 1080P@60HZ 1x2 Splitter Device Over CAT6/6A/7/8 Cable,Support IR Remote Control,EDID Function
Product details
| Management number | 212334737 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212334737 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

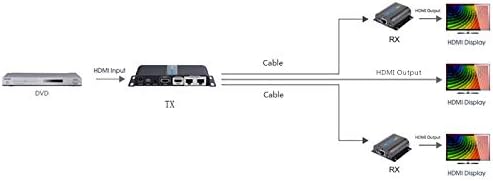

INTRODUCTION This HDMI extender splitter includs one transmitter and two receivers, extend 1 HDMI source to 2 HDMI displays over single CAT6/6a/7 cable up to 40m/131ft. The highest resolution supported is 1920×1080@60Hz, and it supports IR passback, EDID pass through and only one power adapter for the transmitter is needed, the Receiver is powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, Video conference and show center, ect. Features: 1. Distribute 1 HDMI source to 2 HD displays over network cable simultaneously. 2. Support one HDMI Loop-out. 3. Compatible with CAT6/6a/7 network cables. 4. The transmission distance is 40m/131ft. 5. The Highest resolution is up to 1920×1080@60Hz. 6. Support 20~60Hz IR pass back. 7. Support EDID. 8. Support power from transmitter to receiver unit over the CAT6 cable. 9. Plug and play. 10. Wall-mounted function, easy installation. Package Included: 1 * HDMI Extender Transmitter 2 * HDMI Extender Receivers 1 * Power adapter(be used for Transmitter) 1 * IR Blaster cable 2 * IR Receiver cables 1 * User Manual
- 【1x2 HDMI POE Extender Splitter】 -- Extend and display one video on two different HDMI monitors over CAT6/6a/7/8 cable simultaneously; Includes 1 transmitter, 2 receivers and 1 power adapters
- 【Long Distance Transmission with IR】-- Transmit video up to 40m (131ft) at 1080p@60Hz ;Supports 480i/480p/720p/1080i/1080p at 60Hz video resolutions and surround sound up to 7.1-channel or stereo digital audio; Compatible with HDCP compliant devices & content; Support 20~60Hz IR pass back, Allow source device to recognize remote commands
- 【Loop-out Function】--HDMI LOOP-OUT for local display or monitoring function
- 【Support EDID Function】-- Automatic identification of front-end and back-end signal and built-in six EDID resolution option, allows the video source to send out a video signal that is supported by the monitor automatically
| UPC | 703145718938 |
|---|---|
| Brand | LENKENG |
| Cable Type | HDMI |
| Item Weight | 0.8 Kilograms |
| Manufacturer | LENKENG |
| Number of Ports | 2 |
| Compatible Devices | Monitor |
| Connector Type Used on Cable | HDMI |
