Rochester Gauges 7183 Series Adjustable Fuel, Oil, Liquid Level Gauge for Cylindrical Farm Tanks, 1 ½” MPT X up to 48” Float Length

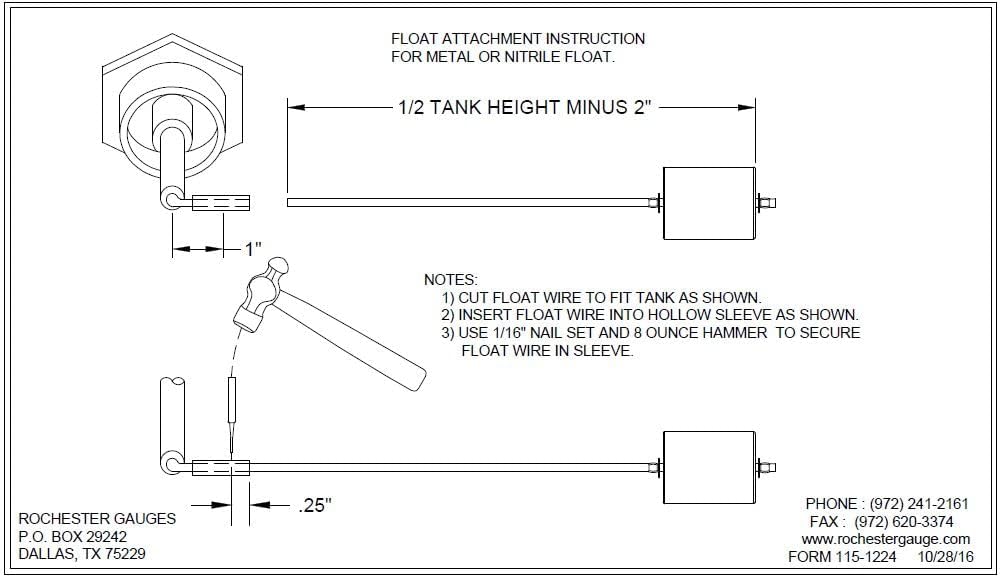

These lever-action gauges are designed primarily for use in stationary or mobile horizontal cylindrical farm tanks or other tanks with flat heads. They are to be mounted on the centerline in the middle of the head. The maximum recommended float length is 48" [1219mm]. The float and rod assembly are shipped unassembled to the head assembly for maximum flexibility to your inventory. The float rod is cut to the proper length for each size tank, notched, then inserted into the sleeve attached to the short section of lever rod, and crimped for firm retention. Accuracy depends upon proper gauge sizing and is typically ±5% of dial indication. Accuracy may be less for some tank shapes and sizes. Accuracy may be less near full and empty. Accuracy may be less if tank is not level. This gauge is not to be used for filling. All accuracy estimates are expressed as a percent of full scale. Allowable tank Pressure 0 to 10 PSIG.

• Primarily for use in stationary or mobile horizontal "cylindrical" farm tanks or other tanks with flat heads.
• 1 ½” MPT mounting.
• Mounts in the center of the tank end head.
• Adjustable for tank diameters up to 100” in diameter.
• Die cast Aluminum construction.
• Gauge indicated accuracy depends upon proper gauge sizing, tank leveling and is typically ±5% of dial indication.
